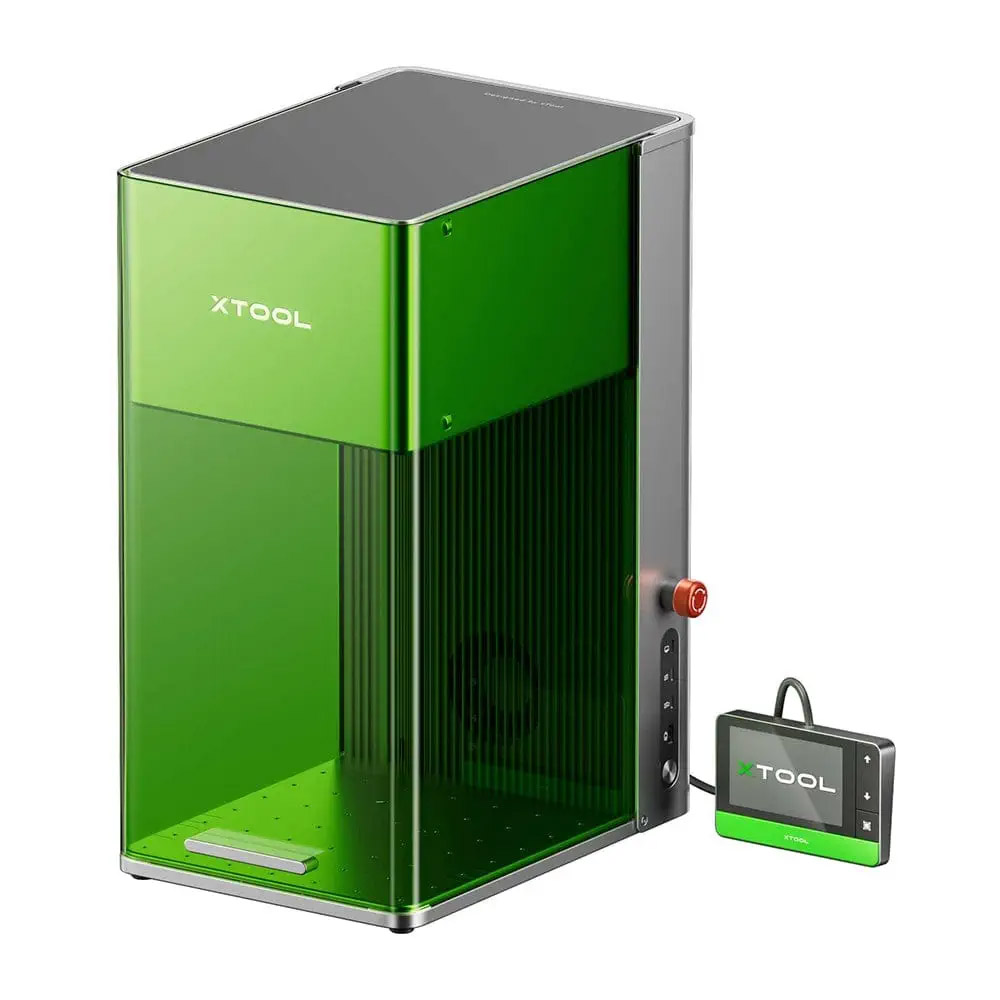

The xTool F1 Ultra is the world’s first desktop laser engraver to combine a 20W fibre laser and a 20W diode laser in a single, compact unit. This dual-laser configuration allows you to work with an extensive range of materials—from metals and plastics to wood, leather, and stone—making it ideal for professionals, small businesses, and serious hobbyists seeking versatility and precision.

This powerful conveyor add-on includes an automatic conveyor feeder that expands your working area from 220 × 220 mm to 220 × 500 mm, enabling continuous and batch engraving on longer materials. Whether you’re creating custom signage, serialized parts, or long-format designs, the conveyor system streamlines your workflow for hands-free operation.

 Key Features

• Dual 20W Laser System
  Equipped with both a 20W fibre laser and a 20W diode laser, the F1 Ultra handles intricate metal engraving, deep embossing, and precise cuts on wood and acrylic with ease.
• Ultra-Fast Processing
  Achieves engraving speeds up to 10,000 mm/s, significantly boosting productivity for batch processing and on-demand customization.
• Smart Camera & Auto Streamline™
  The integrated 16MP camera enables real-time material recognition and positioning. Combined with Auto Streamline™, it automates batch workflows, reducing manual intervention.
• High-Resolution Engraving
  Delivers exceptional detail with laser spot sizes of 0.03×0.03 mm (fibre) and 0.08×0.1 mm (diode), ensuring crisp, high-definition results.
• Standalone Operation
  Features a built-in touchscreen control panel with 7GB of internal storage, allowing for computer-free operation and project management.

Technical Specifications

• Laser Types: 20W Fibre Laser (1064 nm) & 20W Diode Laser (445 nm)
• Working Area: 220 × 220 mm (expandable to 220 × 500 mm with conveyor)
• Max Engraving Speed: 10,000 mm/s
• Connectivity: USB, Wi-Fi
• Software Compatibility: xTool Creative Space, LightBurn

Material Compatibility

• Fibre Laser: Stainless steel, aluminum, brass, silver, plastic, platinum, titanium, gold
• Diode Laser: Wood, leather, acrylic (non-clear), bamboo, fabric, dark glass, ceramic, jade, marble, shale, cement, brick, plated metal, painted metal

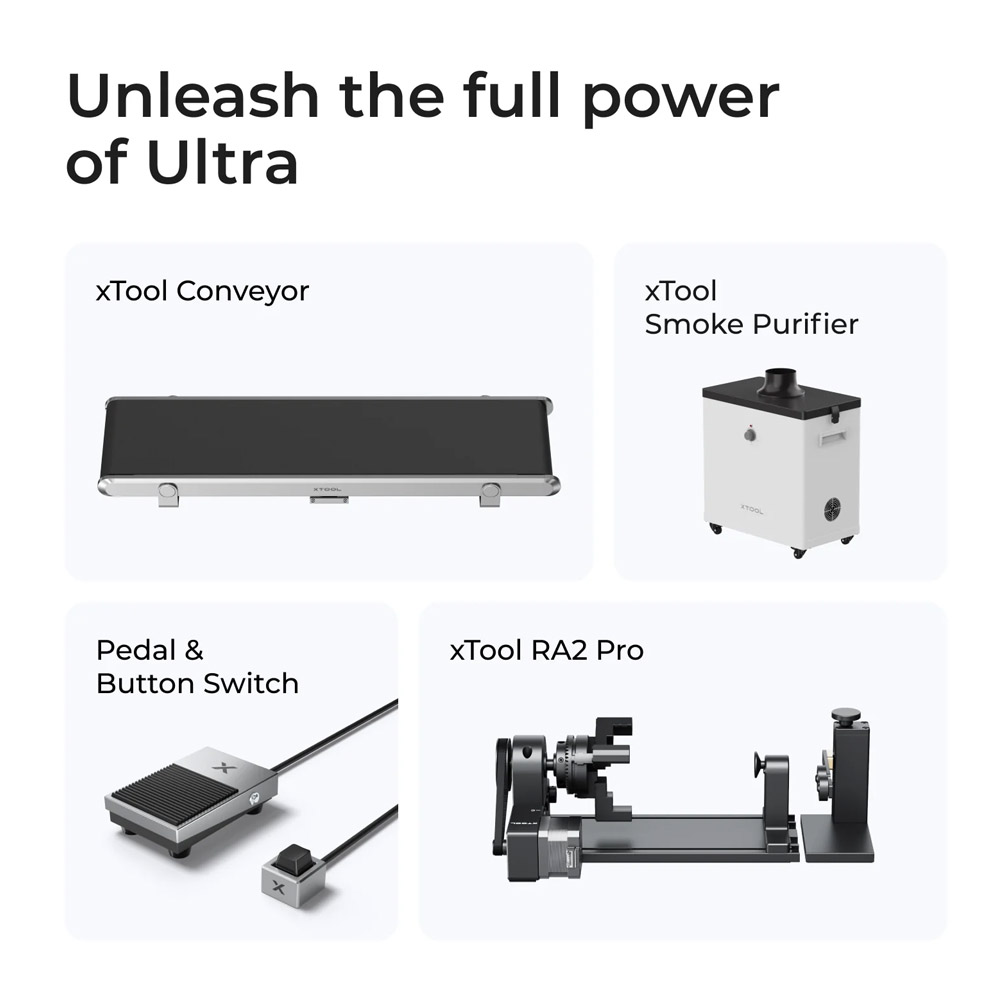

Optional Accessories

• xTool RA2 Pro Rotary Attachment: Engrave cylindrical objects like mugs and rings with precision.
• Automatic Conveyor Feeder: Automate the processing of materials up to 500 mm in length.
• Smoke Purifier: Maintain a clean workspace by efficiently filtering smoke and fumes.

Ideal For

• Jewellery design and metal engraving
• Custom gift and product personalization
• Small-scale manufacturing and prototyping
• Educational institutions and maker spaces
