CO2 Laser Cutters
Our range of CO2 laser engraving and cutting machines are assembled in West Yorkshire using only the highest quality components. Their incredible flexibility and low price makes them perfectly suited for a huge array of applications.
The LS3020 is our smallest desktop laser, well suited to professionals and hobbyists alike. With a 300mm x 200mm bed, 35W laser tube and compact design it is ideal for where space comes at a premium.
The LS3040 is our premium desktop machine. With a 420mm x 300mm bed it is great for both business and private use alike. With a 35W laser tube as standard, power upgrades of 50W and 60W are also available.
The LS3060 is our smallest free-standing PRO machine, but still boasts high flexibility and reliability. With a 600mm x 300mm bed and a 50W laser tube as standard, a 60W tube upgrade is also available.
The LS6840 is a real workhorse of a machine and a great balance between engraving and cutting. It has a 680mm x 400mm bed, is fitted with a 50W tube as standard and is available with a 60W tube upgrade.
The LS6090 PRO is one of our most popular machines due to the huge productivity potential of the 900mm x 600mm bed size and its standard 60W laser tube. It is also available with 80W and even 130W laser tube upgrades.
One look at our LS1290 and you can see it means serious business. The 1200mm x 900mm bed size allows you to work with larger sheets of material. The 80W tube makes light work of most materials but a 130W tube upgrade is also available.
Sometimes only the biggest and best will do! The LS1690 has a huge work area of 1600mm x 900mm and is capable of cutting and engraving a huge variety of materials. With an 80W as standard, a 130W upgrade is also available.
Who says that CO2 machines cannot cut metals? Our LS1390MM has a gas delivery system and will cut mild and stainless steel as well as many non metallic products. This makes it perfect for education and businesses looking for a more versatile laser.
Our LS2515 is a large scale cutting machine, ideal for signmaking and plastics fabrication. The huge 2500mm x 1500mm bed will take a full 8′ x 4′ sheet and the 150W tube will have you needing a new sheet of material in no time.
The LS2030 is a serious cutting machine and will have your sheet materials begging for mercy in no time. With a 2000mm x 3000mm bed and a serious 150W tube it is ideal for large scale professional cutting operations.
About CO2 Laser Cutting Machines
CO2 laser engraving and laser cutting machines are extremely popular due to their relatively low cost and incredible flexibility and accuracy. They are especially well suited to cutting and engraving a wide range of materials such as woods, plastics, leather, paper and card. However, they will not cut metals without a high power tube and gas delivery system such as that provided with our LS1390MM mixed metal / non metal cutting machine.

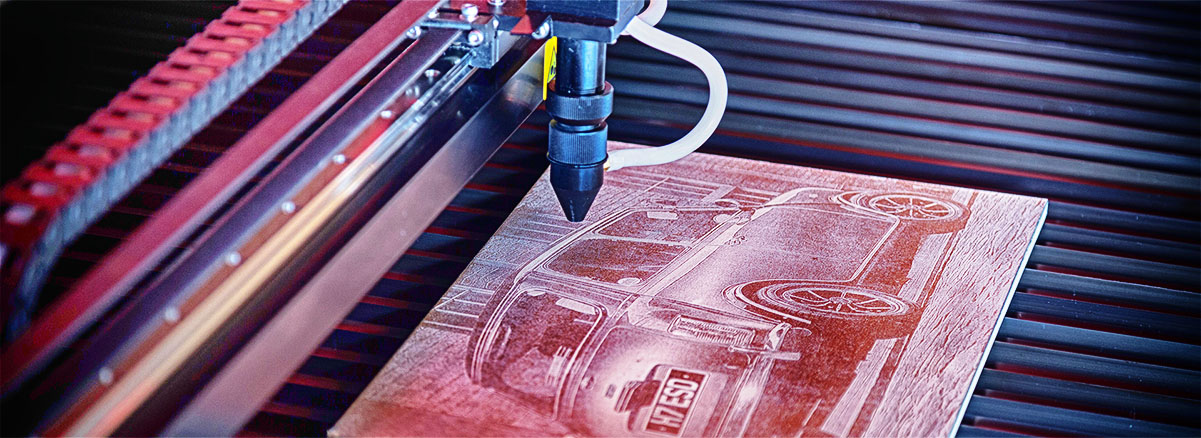

Although regular CO2 laser cutters will not cut metals, they are particularly well suited to engraving anodised, coated and powder coated metals. They will also mark coated metals with the use of a ceramic marking compound which is brushed or sprayed onto the surface of the material prior to marking. The laser machine burns this ceramic compound into the surface of the material and the excess compound is simply washed away.
Reliability and consumables
CO2 laser engraving machines and laser cutter machines are extremely popular in education and industry alike due to their low running costs and price of spare parts. All of our CO2 filled glass laser tubes are water cooled, extremely durable and with a typical life expectancy of 18 months to 7 years. Unlike some other laser sources such as metal tubes, our glass CO2 tubes are inexpensive to buy and easy to fit when they finally need replacing.
Most of our UK CO2 machines are installed with 3 high quality mirrors and a single focussing lens. Although these components are classed as consumable items they rarely need replacing if they are cleaned regularly as part of a routine maintenance schedule.
All of our cabinet type machines are class 1 laser devices which means that the laser radiation is unable to escape the enclosure under normal operating conditions. Class 1 laser devices are the only laser devices recommended for use in laser cutters for schools and education industries, as specified by CLEAPSS and HM Health and Safety Executive. Class 4 devices where the laser beam can escape through open slots or the absence of suitable security switches are not allowed.
Our latest range of machines are fitted with the highest quality CE marked Allen Bradley Guardmaster non-contact safety switches.
Our larger industrial laser cutters, such as our flatbed laser cutters are categorised as class 4 laser devices and suitable safety precautions must be taken during operation, such as the wearing of laser safety glasses.
Any Questions?
We offer realistic and impartial advice as to the practicalities and capabilities of each machine for particular applications. We welcome the opportunity to process sample components for prospective customers and we offer live demonstration sessions on our entire machine range at our showroom in Halifax, West Yorkshire, UK.
